Tire Shredder
A tire shredder is the most efficient way to process large volumes of waste tires into small, uniform chips. Powered by dual motors, each connected to a shaft via couplings and reducers, the shredder uses hardened blades and hooks to grip and tear tires with precision. The shredded material is then passed through a screening system to ensure consistent chip size and quality. As a key component of any tire recycling line, this equipment maximizes productivity while supporting sustainable waste management practices.
- Feeding Diameter: 800~2800 mm
- Output Size: 50~200 mm
- Capacity: 1~35 ton/h
- Application: tire derived fuel (TDF), tire derived aggregates (TDA), saving space for tire storage or transportation.
Tire Granulation Line
The tire granulation line is engineered to produce high-quality crumb rubber (1~5mm) for diverse applications, while efficiently liberating 99.9% of steel wires and nylon fibers. This advanced system combines a tire shredder, rasper, granulator, magnetic separator, and nylon separator, all seamlessly integrated and controlled by a smart PLC system for optimal performance.
- Tire Type: nylon tire, radial tire, OTR tire
- Output Size: 1~5 mm
- Capacity: 500~5,000 kg/h (or higher)
- Rubber Purity: 99.9%
- Usage: rubber floor, rubber tile, artificial grass, pyrolysis oil

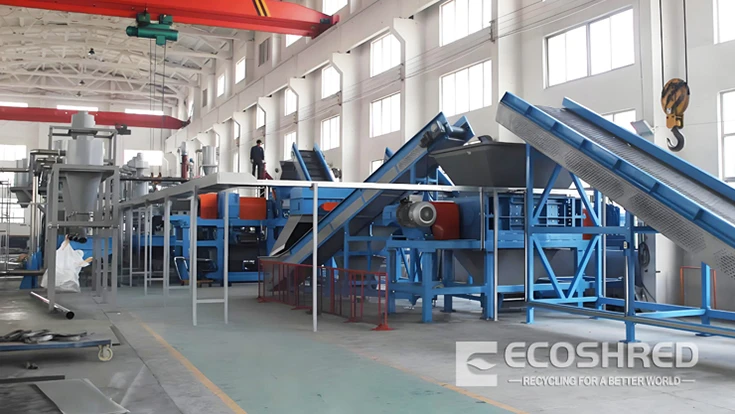

Tire Powder Milling Line
ESP tire powder milling line is manufactured to transform waste tires into ultra-fine powder, ranging from 30 to 100 mesh. With this line, you can get super pure and top-quality black rubber powder for a wide range of demanding industries, such as rubber products, modified asphalt, reclaimed rubber, and even part of the ingredients for making new tires.
- Tire Type: nylon tire, radial tire, OTR tire
- Output Size: 30~100 mesh
- Capacity: 500~5,000 kg/h (or higher)
- Rubber Purity: 99.9%
- Usage: rubber tile, rubberized asphalt, reclaimed rubber
Tire Granule Crushing Line
The RCM tire roller crushing line is a versatile and cost-effective tire recycling solution, suitable for processing waste tires into both rubber crumbs and powder. Its core working principle is to crush tires between two grinding rollers rotating at different speeds. The rubber is then crushed and screened into the ideal size, followed by the use of a magnetic separator and nylon separator to remove steel wires and nylon fibers. The system is easy to install, requires minimal space, and is perfect for new investors seeking a quick start.
- Tire Type: nylon tire, radial tire, OTR tire
- Output Material: pyrolysis fuel oil, non-standard diesel
- Capacity: 5~100 tons/day (or higher)
- By Product: steel wires, carbon black
- Usage: kilns, boiler, furnace, heavy machinery, boats, oil burners

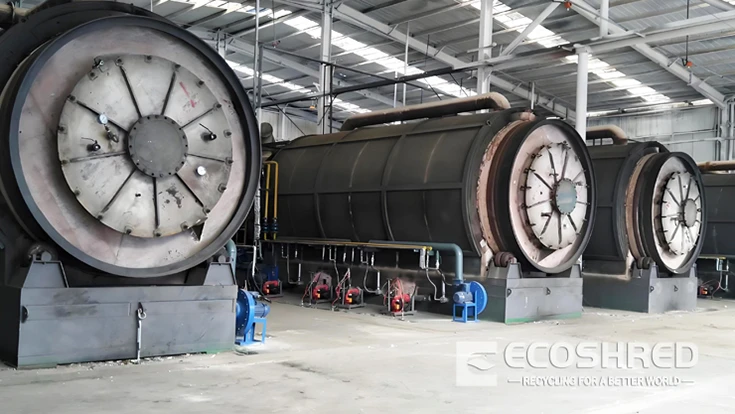

Pyrolysis Line
The CSHB eco-friendly pyrolysis plant converts waste into fuel oil or non-standard diesel for industries like cement factory, metallurgy plant, agricultural machinery, ships, and more. We offer two options to meet diverse market needs: batch type and continuous type pyrolysis plants. Additionally, our team can design custom capacities tailored to your specific project requirements, ensuring a perfect fit for your operations. Besides, we also provide a distillation system to refine the pyrolysis oil or used engine oil to diesel.
- Raw Material: tire, plastic, municipal waste, oil sludge, food waste
- Output Material: pyrolysis fuel oil, non-standard diesel
- Capacity: 5~100 tons/day (or higher)
- By Product: steel wires, carbon black
- Usage: kilns, boiler, furnace, heavy machinery, boats, oil burners
